Built to exude confidence and back it up with serious substance, the 2027 Ford Super Duty® stands ready to help you tackle to-do lists and long days on the job. Its wide array of spacious cab and bed configurations combine with raw capability and refined options to make each truck in the Super Duty lineup a worthy consideration to become your next workhorse. See which cab has the seating and space you need, then see which bed has the cargo room you require with the in-depth specs in this 2027 Ford Super Duty cab and bed guide from Wickstrom Ford.
Once you’ve previewed your options, browse our new inventory and set up a test drive at our Ford dealership in Barrington, IL, to see your favorite Super Duty configuration in person.
More information about a specific truck is just a quick phone call or short message away. Get in touch with one of our Ford truck pros online or by calling (847) 381-8850. As you shop, a member of our team will be your go-to resource for each question and step of the process. It’s just one component of the streamlined, personalized shopping experience we call The Wickstrom Way.
Quick Jump
Navigate to a specific research section to learn more:
2027 Ford Super Duty Cab Options

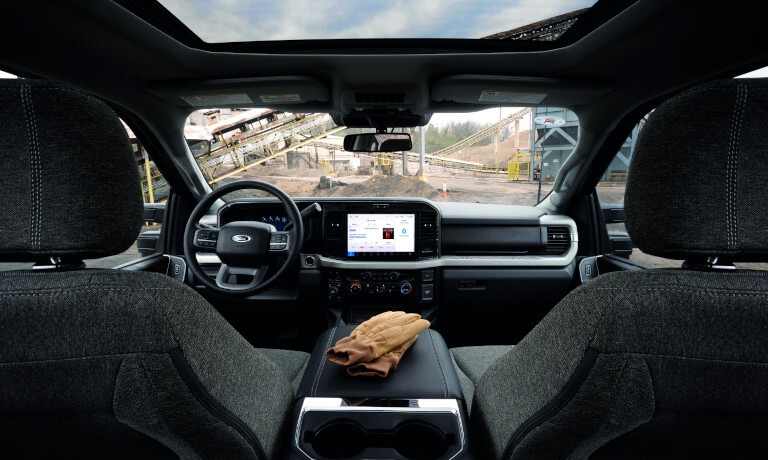

A trio of cab options ensures the interior space in your new 2027 Ford Super Duty aligns with your crew’s requirements. Whether your workday involves just you or you and a partner, the regular cab may be an ideal fit, with a single front bench seat that seats a maximum of three. The super cab and crew cab both seat up to six, with front and rear bench seats; super cab models include 33.5 inches of rear legroom, while crew cab models stretch that space to 43.6 inches of rear legroom. This additional space also shows up in the maximum cab cargo space, with up to 53.4 cubic feet of interior cargo volume in the crew cab and 30.3 cubic feet of cargo space in the super cab.
Select features are available only with certain cab options, including max recline seats and a rear under-seat storage compartment in crew cab models, and a twin-panel moonroof in super and crew cabs. The interior work surface that folds down into a flat panel over the center portion of the front bench seat is offered in select trims for all three cab options.
Interior Dimensions
| Cab Option | Regular | Super | Crew |
|---|---|---|---|
| Max. Seating | Three | Six | |
| Passenger Volume | 64.7 cu.-ft. | 116.3 cu.-ft. | 131.9 cu.-ft. |
| Headroom (Front/Rear) | 40.8 / – in. | 40.8 / 40.3 in. | 40.8 / 40.4 in. |
| Legroom (Front/Rear) | 43.9 / – in. | 43.9 / 33.5 in. | 43.9 / 43.6 in. |
| Shoulder Room (Front/Rear) | 66.7 / – in. | 66.7 / 65.8 in. | 66.7 / 65.9 in. |
| Hip Room (Front/Rear) | 62.5 in. | 62.5 / 64.7 in. | |
| Interior Cargo Volume | 10.9 cu.-ft. | 30.3 cu.-ft. | 53.4 cu.-ft. |
2027 Ford Super Duty Bed Options

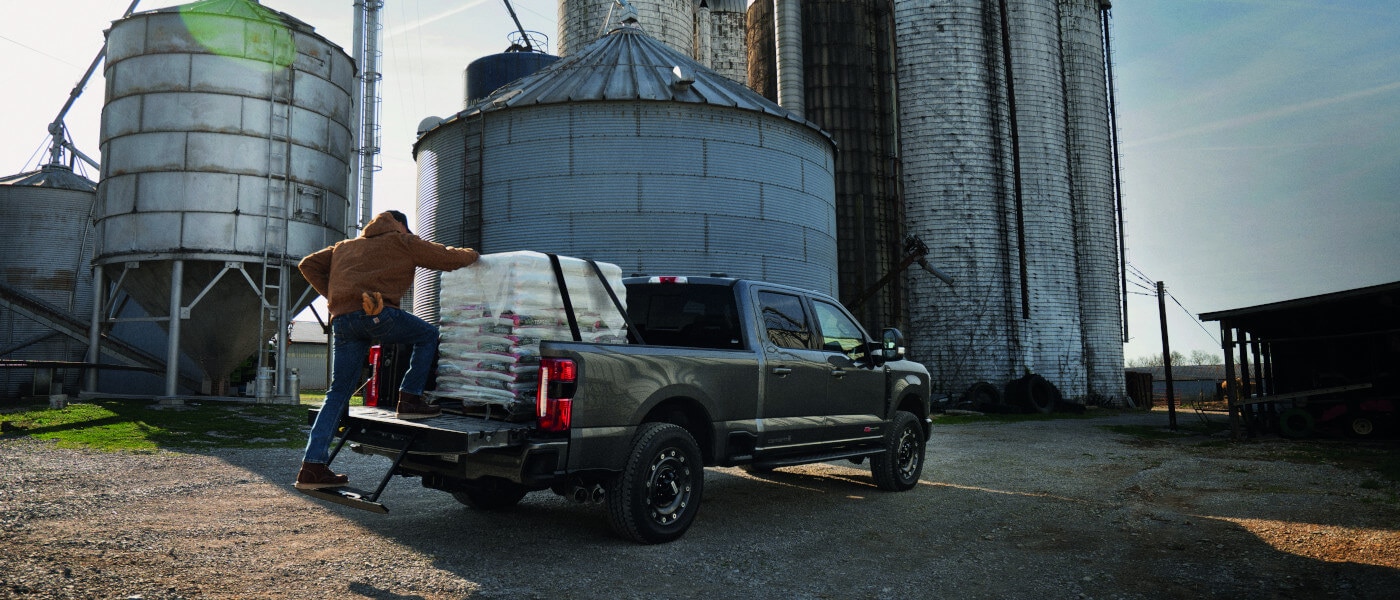

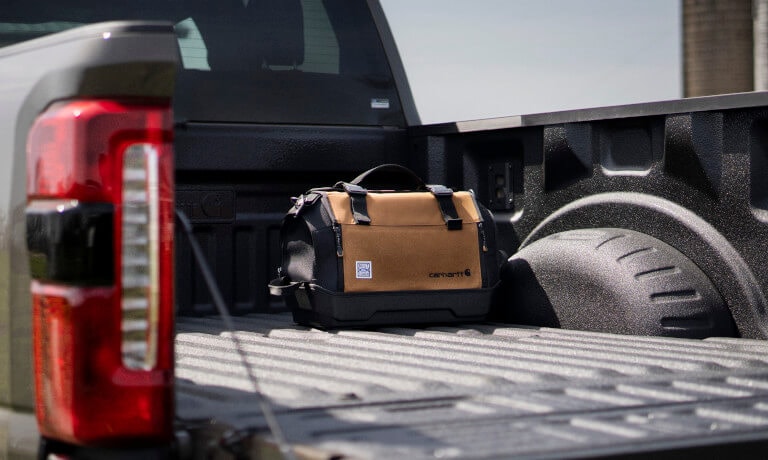

The 2027 Ford Super Duty offers two different bed options that are each built to put in the work your to-do list requires. Trucks built with the 8-foot bed offer up to 78.7 cubic feet of cargo space, while trucks with the 6.75-foot bed provide 65.6 cubic feet of cargo volume. The longer 8-foot bed is available with all three cab sizes, while the shorter 6.75-foot bed is offered only with super cab and crew cab variants.
The Super Duty is built with easy bed access features, including standard box side and rear corner steps that allow you to climb up and examine or secure your cargo, even with boots on. Some of the unique bed-related features that the Super Duty offers aren’t limited to bed length; optional Pro Power Onboard generator capabilities and on-board scales with smart hitch capabilities are offered in both 8- and 6.75-foot truck beds.
Compare both Super Duty bed options with the accompanying specs.
| Bed Length | 6.75-ft. | 8-ft. |
|---|---|---|
| Cargo Box Volume | 65.6 cu.-ft. | 78.7 cu.-ft. |
| Cargo Length (At Floor) | 81.9 in. | 98.1 in. |
| Cargo Box Height | 21.1 in. | |
| Cargo Bed Width (Max) | 66.9 in. | |
| Cargo Bed Width (Between Wheelhouse) | 50.5 in. | |
| Regular Cab Wheelbase | N/A | 141.5 in. |
| Super Cab Wheelbase | 147.8 in. | 164.1 in. |
| Crew Cab Wheelbase | 159.7 in. | 175.9 in. |
2027 Ford Super Duty Cab & Bed Model Availability
After picking out the 2027 Ford Super Duty cab and bed options that match your needs, the final step is to focus your search on the trim levels that offer your ideal configuration. Regular cab availability is limited to the XL and XLT trims for the Super Duty F-250®, F-350®, and F-450®. If you want a super cab, the F-250 and F-350 are the Super Duty trucks that offer it. F-450 models are offered only with an 8-foot bed, while the F-350 and F-250 provide access to both bed options.
Cab and bed configurations available with each Super Duty truck and trim are as follows:
| F-250 | F-350 | F-450 | |
|---|---|---|---|
| Regular cab, 8-foot bed | XLXLT | XLXLT | XLXLT |
| Super Cab, 8-foot bed | XLXLT | XLXLT | – |
| Super Cab, 6.75-foot bed | XLXLT | XLXLT | – |
| Crew cab, 8-foot bed | XLXLTLariat®King Ranch®Platinum® | XLXLTLariatKing RanchPlatinum | XLXLTLariatKing RanchPlatinum |
| Crew cab, 6.75-foot bed | XLXLTLariatKing RanchPlatinum | XLXLTLariatKing RanchPlatinum | – |
Learn More About the Ford Super Duty
Wickstrom Ford is dedicated to helping you find the work-ready truck you need for your heavy-duty towing and hauling needs. We’ve created additional resources and guides to help you research the capabilities, features, and options available.
New Ford Super Duty for Sale Near Barrington, IL
Once you’re ready to take an in-person look at the Super Duty, schedule a test drive with your favorite truck from our new inventory in Barrington, IL. For personalized assistance with any questions about the Super Duty, contact a member of our team online or by calling (847) 381-8850.
